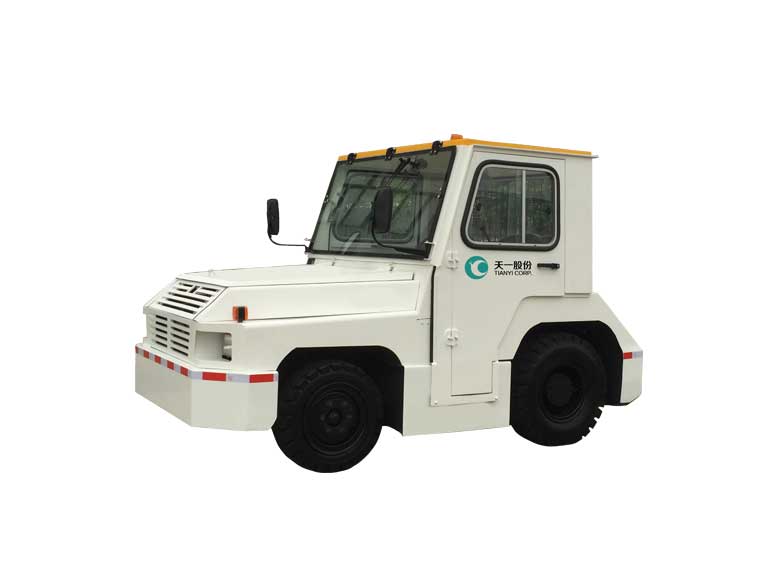

30KN Aircraft Tow Tractor | |
30KN Aircraft Tow Tractor is composed of body system, power system, transmission system, steering system, braking system and electrical system. The crew consists of 2 people. The maximum speed is 28km/h, the maximum hook traction force is 30kN, the rated traction mass is 39 tons, and the minimum turning diameter is 5,950 mm. Technical parameters of 30KN Aircraft Tow Tractor Total length (mm) : 3180/2950 Total width (mm) : 1490 Total height (mm) : 2180 (including the cab) Shaft distance (mm) : 1620 Wheel distance to the front wheel (mm) : 1275 Rear wheel mm: 1230 Front overhang mm: 690 Rear overhang mm: 640 Minimum ground clearance in mm: 150 Minimum turning diameter (mm) : 5950 Maximum speed (empty load/full load) km/h: 28/13 Curb weight (kg) : 4210 Front axle load-bearing capacity kg: 1280 Rear axle load-bearing capacity kg: 2930 Total mass (kg) : 4340 Rated traction mass kg: 39,000 Maximum traction force kN: 30 The height of the traction bolt center from the ground (front/back) mm: 20/80 Jiangsu Tianyi Aviation Industry Co., Ltd. Factory: No.2 Hang Kong Road High-tech zone, Jianhu county, Yancheng City, Jiangsu Province, P.R.China Shanghai Office: Room 1103, Building 35, No. 1399 Jiasong Middle Road, Qingpu District, Shanghai, China Tel: +86 21 50496068 / +86 21 50496058 / +86 400 9980 919 Mobile: +86 137 -6133 -5725 (As WeChat) +86-134 -7248 -8657 +86-195 -1651 -9903 +86-137 -7424 -8052 E_ mail: joinsun@jstianyi.com.cn airport.gse@jstianyi.com.cn Website: www.tianyi-gse.com  | |
