Wallys|QCN9074 WiFi Card IPQ 6010,IPQ6018 802.11ax Supprot OpenWRT 2x2 2.4G&5G | |

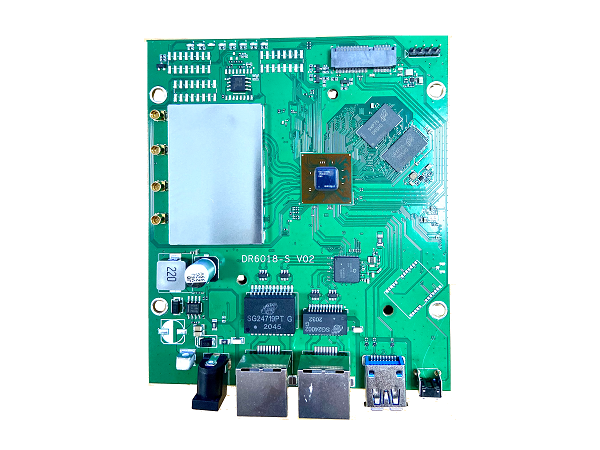

DR6018-S V02 IPQ6010/IPQ6018/IPQ6000 Quad-core ARM 64bit A53 @1.8GHz Processor 1GB DDRL3L System Memory 8MB NOR Flash, 256MB NAND Flash Supports Dynamic Frequency Selection (DFS) 2x2 On-board 2.4GHz radio, up to 573Mbps physical Data Rate 2x2 On-board 5GHz radio, up to 1201Mbps physical Data Rate Wallys Communications (SuZhou) Co., Ltd., http://www.wallystech.com,which is a professional supplier specializing in product design, manufacturing and offering superior OEM/ODM/JDM services in wireless communications. As a specialized manufacturer and exporter for these products in China,We sincerely hope to establish business relations with your esteemed corporation. BY:Wallys Communications (Suzhou ) Co., LTD EMAIL:sales1@wallystech.com DR9074-6E(PN02.7) https://www.wallystech.com/Routerboard/DR6018-S-V02-wifi6-Qualcomm-IPQ6010-2T2R-2-GE-port-supporting-QCN9074-wifi-card-802.11AX-MU-MIMO-OFDMA.html Applications Security Surveillance Commercial radio coverage Hotel Wireless application Country coverage Forest fire protection engineering Some special scene application Absolute Maximum Rating Parameter Rating Unit Supply Voltage 24V~48V(DC Jack) V Operating Temperature Range -40 to +70 ºC Storage Temperature Range -45 to +105 ºC Operating Humidity Range 5 to +95 (non-condensing) % Hardware Specifications Symbol Parameter CPU Qualcomm-Atheros IPQ6010 CPU Frequency Quad-core ARM 64 bit A53 @1.8 GHz processor System Memory 1GB (2x 512MB) DDR3L 16-bit interface with 32-bit memory bus design Ethernet Port 1 x 1Gbps Ethernet Ports & POE 1x 1Gbps Ethernet Ports NGFF Slot M.2 (NGFF) “E Key” Socket with MiniPCIe 3.0(For WiFi Module) SD Card Slot 1x SD Card Slot(Option) USB /header 1x USB 3.0 Port(Option) POE 24V~48V passive POE/Active POE(Suport 802.3bt) DC Jack 24V~48V power supply LED header 2.0 pitch pin header Serial Port 1x Serial Port 4 Pin Connector Wireless On-board 2x2 2.4GHz MU-MIMO OFDMA 802.11b/g/n/ax, max 23dBm per chain On-board 2x2 5GHz MU-MIMO OFDMA 802.11a/n/ac/ax, max 20dBm per chain 4 x MMCX Connectors Nor Flash 8MB Nand Flash 256MB DDR 256MB~512MB Dimension 125mm x 105mm x 20mm ![]() | |
